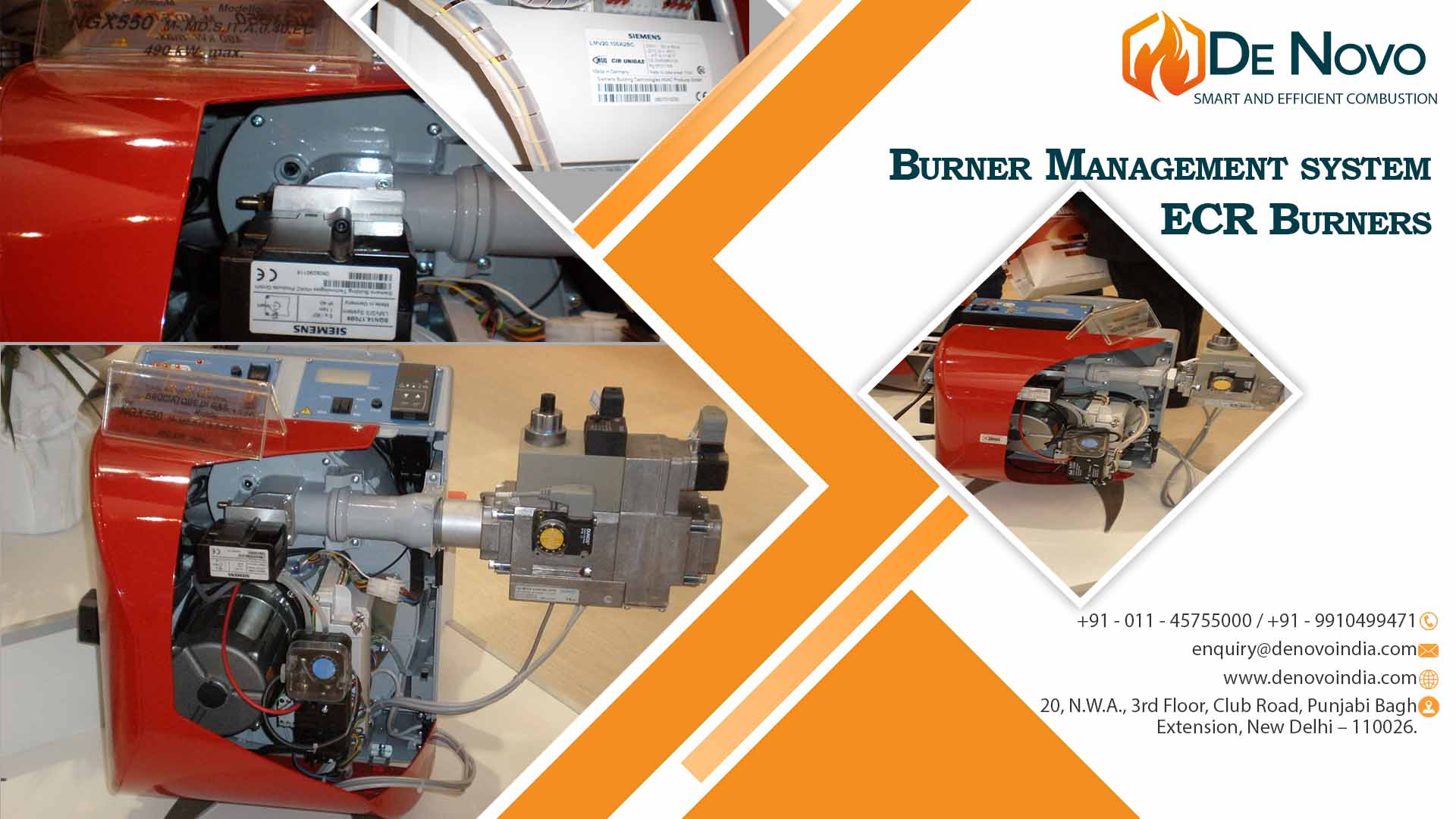

Burner Management system/ ECR Burners

Smart and efficient combustion

De Novo

CIB UNIGAS S.p.A. can provide small and medium size burners (up to 2.050 KW) with an electronic control system. They can be used both on single fuel burners (gas or light oil) and on dual fuel burners (gas/light oil).

WITH LMV 2… MICRO PROCESSOR

EA Medium-small burners complete with electronic cam

EB Medium & small burners complete with electronic (cam and inverter)

EC Medium & small dual fuel burners complete with electronic cam.

ED Medium & small dual fuel burner completer with electronics cam and inverter.

Types of controllers & Servo motor:

LME20, LMV26, LMV37, LMV51, LMV52,

SQN14, SQM33

This system offers many features:

• Reduction of mechanical moving parts

• Built-in flame detection box

• Integrated gas proving system

• Possibility to install different types of flame sensors, so

That the electronic cam system can be used on all applications

• Variable speed drive VSD (only on certain versions)

• Error-code display on screen in case of lock-out

• Possibility to program or to exclude the post purge time

• Display of hours run

Modbus communication, system, only upon request, through the software (to be quoted separately), except the basic version.

Optimal air/fuel ratio regulation, with high precision and repeatability of the regulations made.

Easy programming, Boths through the AZL programmers, the proper software.

WITH LMV 5… MICRO PROCESSOR

ES Medium-small burners complete with electronic cam, without O2 control, without inverter

EO Medium-small burners complete with electronic cam and O2 control, without inverter

El Medium-small burners complete with electronic cam and inverter, without O2 control

EK Medium-small burners complete with electronic cam, inverter and O2 control

Types of controllers & Servo motor:

LMV51, LMV52,

SQM45 , SQM 48

CIB UNIGAS S.p.A. has implementing, in its series of burners, an electronic system of command and control/ Burner Management System also know as ECR burners. This innovative system, divided into two types of devices, can be used both for civil and industrial installations (up to 2.050 kW) and for burners which use a single or mixed fuel and with continuous or intermittent operation. This system allows the control of the various elements which play an important role in the correct mixture of the fuel and combustion air.

This solution permits user to achieve the maximum precision in the combustion adjustment. The system can also be expanded through interface with an oxygen control probe and/or a fan speed adjustment inverter in order to improve the performance. In this way we can obtain high savings both in terms of fuel and electric power required.

The command-and-control system is composed of a microprocessor electronic unit, which integrates all the burner command, control functions, programming and adjustment the burner.

Flame control box integrated functions:

• Burner control;

• Electronic cam:

• Power regulator;

• Gas valve leakage control system;

• Oxygen control;

• Inverter control;

• Dialogue with BMS systems or PLC (MOD Bus);

• Burner commissioning and configuration via PC-tool;

• Simple programming with AZL and PC-tool;

• Complete self-diagnostic function (error memory, number operation time, clock etc.);

• 3 levels of parameter access: (manufacturer, servicing personnel, final user);

• Remote diagnostics;

• All components can be easily interchanged;

• Parameter upgrading with PC-tool;

• Dialogue with MOD Bus protocol.

More info : Dual Fuel Burners Natural Gas              Dual fuel burners

Tag:  #Best Industrial Heavy oil burner in India #Best Industrial Gas Burners #Dual fuel burners #Natural Gas burners in India #Gas Burner Low Nox #best gas burner in india #industrial heavy oil burners #industrial light-oil burners #light oil burners #industrial gas burner suppliers #dual fuel burner supplier #industrial gas burner dealers #dual fuel burners for boilers #Dual Fuel Burners Natural Gas #industrial gas burner price #industrial dual fuel burner installation #furnace oil burner #furnace oil fired burner #PNG and hsd fired burners #industrial gas burners #industrial LPG fired burners #siemens uv sensor #Siemens UV Flame Detectors #siemens burner management system #siemens controller #siemens servo motor #Siemens Gas Valve #siemens photocell #danfoss controller #nozzle #ingnition transformer #oil pump #Cofi ignition cable #ignition transformer #Suntec Fuel pump #suntec oil burner pump #suntec oil pump #Suntec pump#Multibloc #Monarch nozzles #fuel burner nozzle #fuel oil nozzle #oil burner nozzles #Fida ignition transformer #fida transformer #brahma gas solenoid valves #brahma solenoid #fuel solenoid valves #gas solenoid valve #CIB Unigas burner controller #unigas burner #unigas heavy oil burners #cib unigas burner #heavy fuel oil burner #unigas heavy oil burners #unigas light oil burners #dungs air and gas valve #dungs air and gas pressure switch #Dungs Gas Multibloc

industrial oil/gas fired burners

Ours burner (Gas or Oil Fired Burners) are equipped with the most modern automatic’s mechanical or electronics modulation systems which allow the correct fuel/air ratio. In this way, the BURNER thermal load can be adapted with precision to the heat required at every moment of the operation, thus optimizing the performance. The electronic modulation system makes perfect use of the fuel/combustion air curve, which proves to be wider than the curve obtained by the mechanical modulation system.

All Monoblock burners are equipped with a fan motors or a separate’s motor for the operations of the light/heavy oil fuel pump through a flexible coupling. The control panel is completed with an electronic control box (Burner Controller) and with a Flame sensors (i.e. Photcell, UV Sensor, Ionization rod etc..) . The control logic is incorporated into a Burner Control Box. The atomisation’s and fuel supply system include Spray nozzles, ignition electrode, Ignition transformers, flexible hose and fitters.

This burner’s series has been producing to work in a wide range of applications such as

· Textile Industries

· Automobile Industries

· Hospitality Industries

· Boilers

· Die-casting

· Cement Industry

· Bakery etc…

We have a range variety of Burners starting from 20 kW to 80 MW Burners for Gaseous and Liquid fired burners.

We deal in Best Industrial Gas Burners, High-Speed Diesel Oil fired Burners, Light Oil fired Burner, Furnace Oil fired Burners and Duel Fuel Burners, Make CIB UNIGAS, Italy.
